| 加工定制：否 | 品牌：YOKOGAWA/横河 | 型号：ALR121-S00 |
| 产品认证：进口原装正品 | 用途：CS3000系统卡件 |

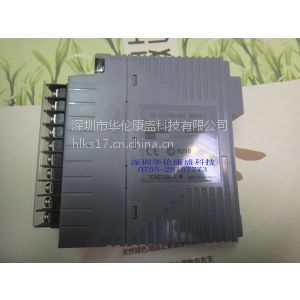

ALR121-S00 横河YOKOGAWA通信模块
Item |
| Specifications |
| |
Model | ALR111 |
| ALR121 |
|
Interface | RS-232C (2 ports) |
| RS-422/RS-485 (2 ports) |
|
How connected | Point-to-point |
| Point-to-point (RS-422) Multipoint (RS-485) |
|
How communicates | Half-duplex |
|
|
|
How synchronizes | Start-stop synchronization |
|
|
|
Communication speed | 1200/2400/4800/9600/19200/38400/57600/76800/115200 bps |
| ||
Transmission code | ASCII/binary |
|
|
|
Character length | 7/8 bits |
|
|
|
Stop bit length | 1/2 bits |
|
|
|
Parity check | None/even/odd |
|
|
|
When a signal is received after data | 1 ms |
|
|
|
transmission |
|
|
|
|
Transmission distance | Maximum 15 m |
| Maximum 1200 m (total extended length) |
|
How installed | Mounted in ANB10?, ANR10?, AFF50?, AFV10? |
| ||
I/O wiring | AKB131, AKB132, AKB133, and AKB134 | Cable with 3-pair shield, AKB161 or AKB162 |
| |
cables, etc. |
|
| ||
|
|
|
| |
Wiring connection | D-sub 9-pin (female x 2) |
| Clamped with terminal block’s M4 screws |
|
| (5 poles x 2) |
| ||
|
|
|
| |
Current consumption | 0.5 A |
|
|
|
Weight | 0.3 kg |
| 0.3 kg |
|
